AquaLight

2 variants available 2 accessories

Description

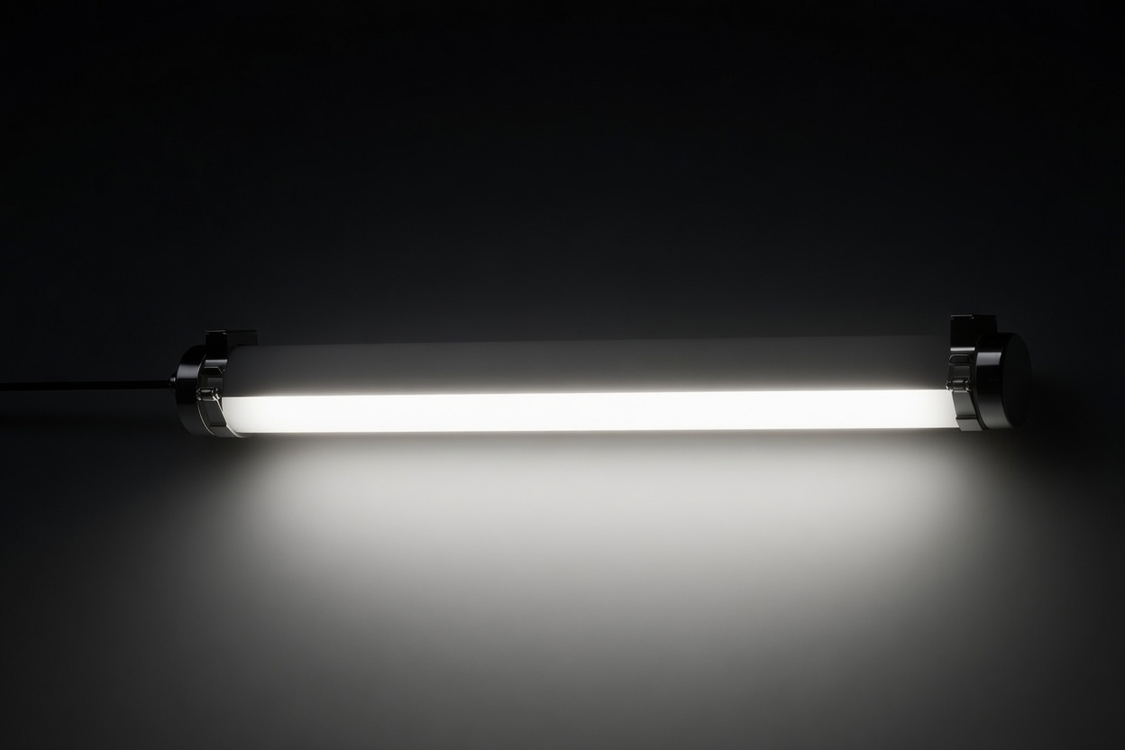

Aqualight is the linear LED luminaire engineered for those operating in the most critical and demanding industrial environments. With IP69K protection — the highest level available on the market — Aqualight withstands high-pressure, high-temperature water jets, making it the definitive choice for wash-down applications, humid environments, and high-corrosion-risk contexts.

The AL6063 + PMMA + 304 stainless steel housing delivers superior corrosion resistance even in alkaline environments with prolonged exposure to humidity. The PMMA optical cover ensures a symmetric 120° light distribution with exceptional efficacy of 150 lm/W, providing uniform, efficient, and long-lasting light along the full length of the luminaire.

Available in 40W (1200mm) and 60W (1500mm) versions with luminous flux up to 9,000 lm, available in 4000K as standard colour temperature, with other colour temperatures available on request to suit any project requirement. With an L70B10 service life exceeding 102,000 hours, a 5-year warranty, a high-quality Tridonic driver, and optional DALI, Aqualight is the uncompromising professional solution for industrial linear lighting.


CRI80
Emergenza
Quick
Manutenzione Facilitata
ENEC
DALI
-40°C
Sensore movimento
+50°C
Classe I
CE
5 Yrs Warranty
IP69
IK10

Key features

    1. IP69K + IK10 Protection — The highest availableResistance to high-pressure, high-temperature water jets for the most severe wash-down applications, combined with IK10 impact resistance to guarantee structural integrity in the most aggressive operating environments

    2. AL6063 + PMMA + 304 stainless steel housingSuperior corrosion resistance and guaranteed longevity: premium materials selected to withstand alkaline environments, intense humidity, and aggressive chemical agents, maintaining structural reliability throughout the product's entire service life

    3. 150 lm/W — Available in 40W/1200mm and 60W/1500mmBest-in-class energy efficiency: luminous output up to 9,000 lm with minimised consumption, in two standard lengths to fit precisely any project layout

    4. L70B10 service life over 102,000 hours — 5-year warrantyAn exceptionally long-term investment: extraordinary longevity certified to TM-21 based on LM-80 data, minimising maintenance, management, and replacement costs over the years

    5. Tridonic driver + optional DALIReliability and intelligent lighting management: the high-quality Tridonic driver ensures consistent, stable performance over time, while the DALI option enables intelligent dimming and integration into advanced building automation systems

    6. Standard CCT 4000K — Other CCT on requestCustomizable chromatic versatility: the standard 4000K version delivers neutral, productive light ideal for industrial and technical environments, with other colour temperatures available on request for specific project needs

Applications

  • Food industry & slaughterhousesIP69K for high-pressure, high-temperature wash-downs: ideal for meat processing plants, dairies, fish industries, and environments requiring frequent, aggressive sanitation with strict hygiene standards

  • Pharmaceutical & chemical industryResistance to chemical and alkaline corrosion for laboratories, production departments, and environments with constant exposure to aggressive chemical agents and corrosive vapours

  • Car washes & vehicle wash tunnelsIP69K and IK10 for installations subject to continuous high-pressure water jets and intensive chemical cleaning agents

  • Livestock farming & zootechnical industryTotal humidity and corrosion resistance for poultry houses, stables, and high-humidity environments with intensive cleaning cycles

  • Swimming pools & aquatic facilitiesIP69K protection against water and corrosion for pool tanks, poolside areas, water treatment plants, and professional aquatic structures

  • Cold storage & refrigerated warehousesGuaranteed operation from -20°C to +45°C for temperature-controlled environments where reliability and thermal fluctuation resistance are non-negotiable requirements

Variants

Code Watt Lumen Lm/W Kelvin Optics Dimensions Product datasheet LDT
AQL-WP-40W-840 40 6000 150 4000 PMMA 1200*80*80 (mm) Download -
AQL-WP-60W-840 60 9000 150 4000 PMMA 1600*80*80 (mm) Download -

Accessories and options

Code Description
1010 DALI2 Dimming Protocol
4040 Cable length on request
