F100 Gen2

21 variants available 3 accessories

Description

✅ Perfect English Translation (Ready for Website)

---

F100 Gen2

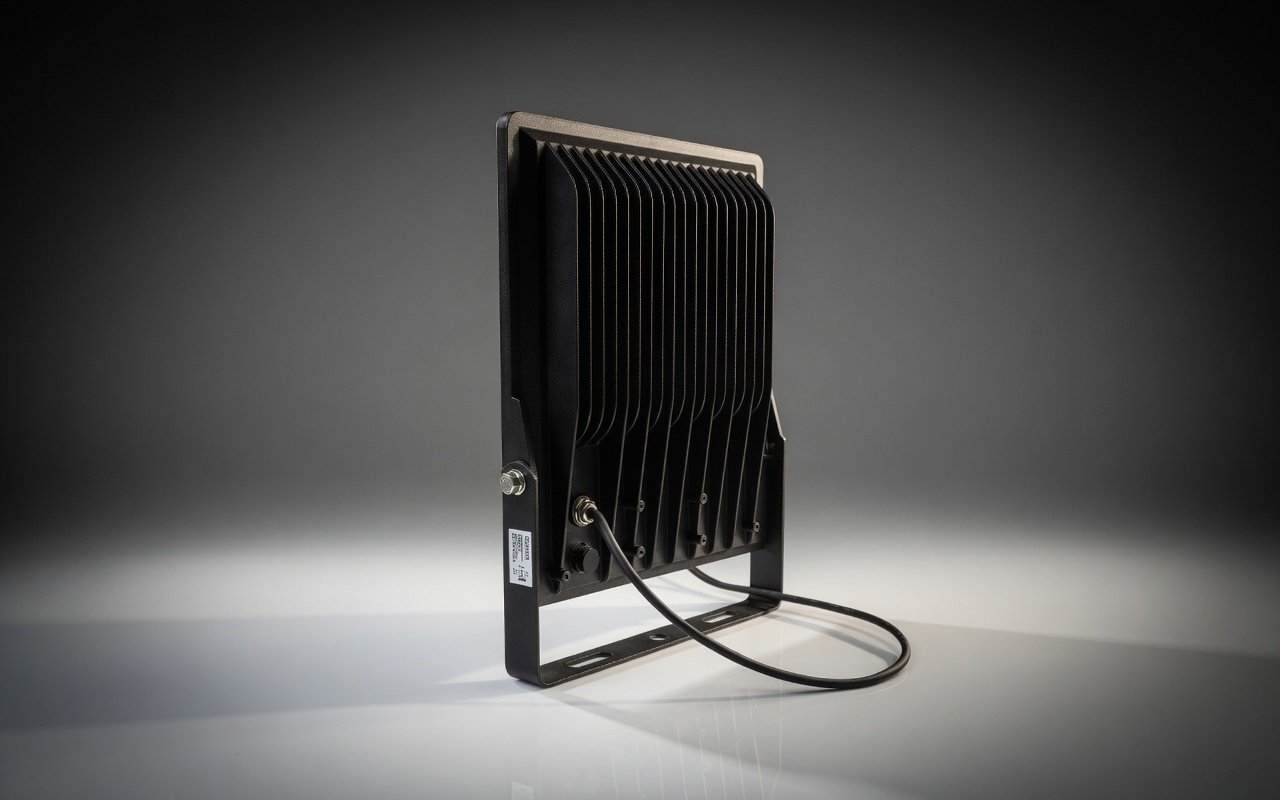

The F100 Gen2 LED Floodlight combines high power, a compact design, and maximum energy efficiency. Thanks to advanced Lumileds LED technology, it delivers an impressive luminous efficacy of 170 lm/W, significantly reducing energy consumption and maintenance costs without compromising light quality.

Designed for professionals who demand high performance in a compact form, this floodlight is the ideal solution for professional outdoor lighting applications.

Key Features

- High-efficiency Lumileds LEDs

- 170 lumens per watt – excellent performance-to-consumption ratio

- Premium aluminum housing with optimal heat dissipation

- IP65 protection rating – dust and water resistant

- Wide voltage range: 190–260V AC (ideal for industrial environments)

- Slim and lightweight design for easy and versatile installation

### Available Optics Options

Choose the beam angle that best suits your project:

- 30° – Ideal for facades, monuments, and focused spotlighting

- 60° – Perfect for tennis courts and sports facilities

- 90° – Excellent for medium-sized industrial warehouses

- 120° – Ideal for parking lots, loading bays, and large outdoor areas

- Asymmetric 80° × 155° – Perfect for facades, industrial buildings, and roads (maximum efficiency with no light waste)

TRIAC Dimming

The floodlight is equipped with TRIAC dimmable control, allowing simple and cost-effective brightness adjustment. It integrates seamlessly with standard dimmers already present in most installations.

Designed For

Engineered for professional installers seeking a reliable, versatile, and high-performing product. Ideal for outdoor lighting projects that require energy efficiency, long lifespan, and excellent value for money.

CRI80
IK8
Classe I
CE
7 Anni di garanzia
IP 65
TRIAC DIMM

Key features

    • High-efficiency Lumileds LEDs with 170 lm/W

    • Premium aluminum housing with optimal heat dissipation

    • IP65 protection against dust and water

    • Wide voltage range 190-260V AC (ideal for industrial environments)

    • Slim and lightweight design for easy and versatile installation

    • TRIAC dimmable control for brightness adjustment

Applications

  • Building facades and monuments (with 30° or asymmetric optics)

  • Tennis courts and sports facilities (60° optics)

  • Industrial warehouses and sheds (90° optics)

  • Parking lots, loading bays, and large outdoor areas (120° optics)

  • Roads, pathways, and pedestrian zones (asymmetric 80°x155° optics)

  • General professional outdoor lighting (industrial, logistics, and commercial areas)

Variants

Code Watt Lumen Lm/W Kelvin Optics Dimensions Product datasheet LDT
F100G2-100W-840-30-WH 100 15000 150 4000K 30° Simmetrico 315*245*45 [mm] Download -
F100G2-150W-840-30-WH 150 23000 153.33 4000K 30° Simmetrico 365*290*45 [mm] Download -
F100G2-200W-840-30-WH 200 30000 150 4000K 30° Simmetrico 365*290*45 [mm] Download -
F100G2-100W-840-60-WH 100 15000 150 4000K 60° Simmetrico 315*245*45 [mm] Download -
F100G2-150W-840-60-WH 150 23000 153.33 4000K 60° Simmetrico Download -
F100G2-200W-840-60-WH 200 30000 150 4000K 60° Simmetrico Download -
F100G2-100W-840-90-WH 100 15000 150 4000K 90° Simmetrico Download -
F100G2-150W-840-90-WH 150 23000 153.33 4000K 90° Simmetrico Download -
F100G2-200W-840-90-WH 200 30000 150 4000K 90° Simmetrico Download -
F100G2-100W-840-DIFF-WH 100 15500 155 4000K Diffondente Download -
F100G2-150W-840-30-WH 150 23000 153.33 4000K 30° Simmetrico 365*290*45 [mm] Download -
F100G2-200W-840-30-WH 200 30000 150 4000K 30° Simmetrico 365*290*45 [mm] Download -
F100G2-100W-840-60-WH 100 15000 150 4000K 60° Simmetrico 315*245*45 [mm] - -
F100G2-100W-840-30-BL 100 15000 150 4000K 30° Simmetrico 315*245*45 [mm] Download -
F100G2-150W-840-30-BL 150 23000 153.33 4000K 30° Simmetrico 365*290*45 [mm] Download -
F100G2-200W-840-30-BL 200 30000 150 4000K 30° Simmetrico 420*345*45 [mm] Download -
F100G2-100W-840-60-BL 100 15000 150 4000K 60° Simmetrico 315*245*45 [mm] - -
F100G2-100W-840-30-BL 100 15000 150 4000K 30° Simmetrico 315*245*45 [mm] Download -
F100G2-150W-840-30-BL 150 23000 153.33 4000K 30° Simmetrico 365*290*45 [mm] Download -
F100G2-200W-840-30-BL 150 23000 153.33 4000K 30° Simmetrico 420*345*45 [mm] Download -
F100G2-100W-840-60-BL 100 15000 150 4000K 60° Simmetrico 315*245*45 [mm] - -

Accessories and options

Code Description
5510 Plug connector
4040 Cable length on request
5050 Lamp body color on request
