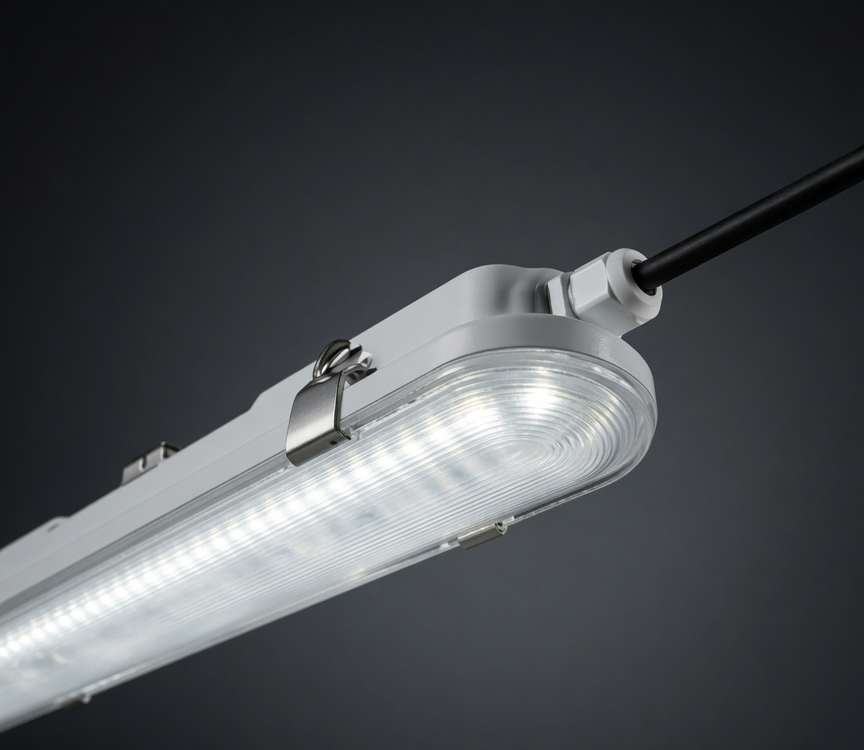

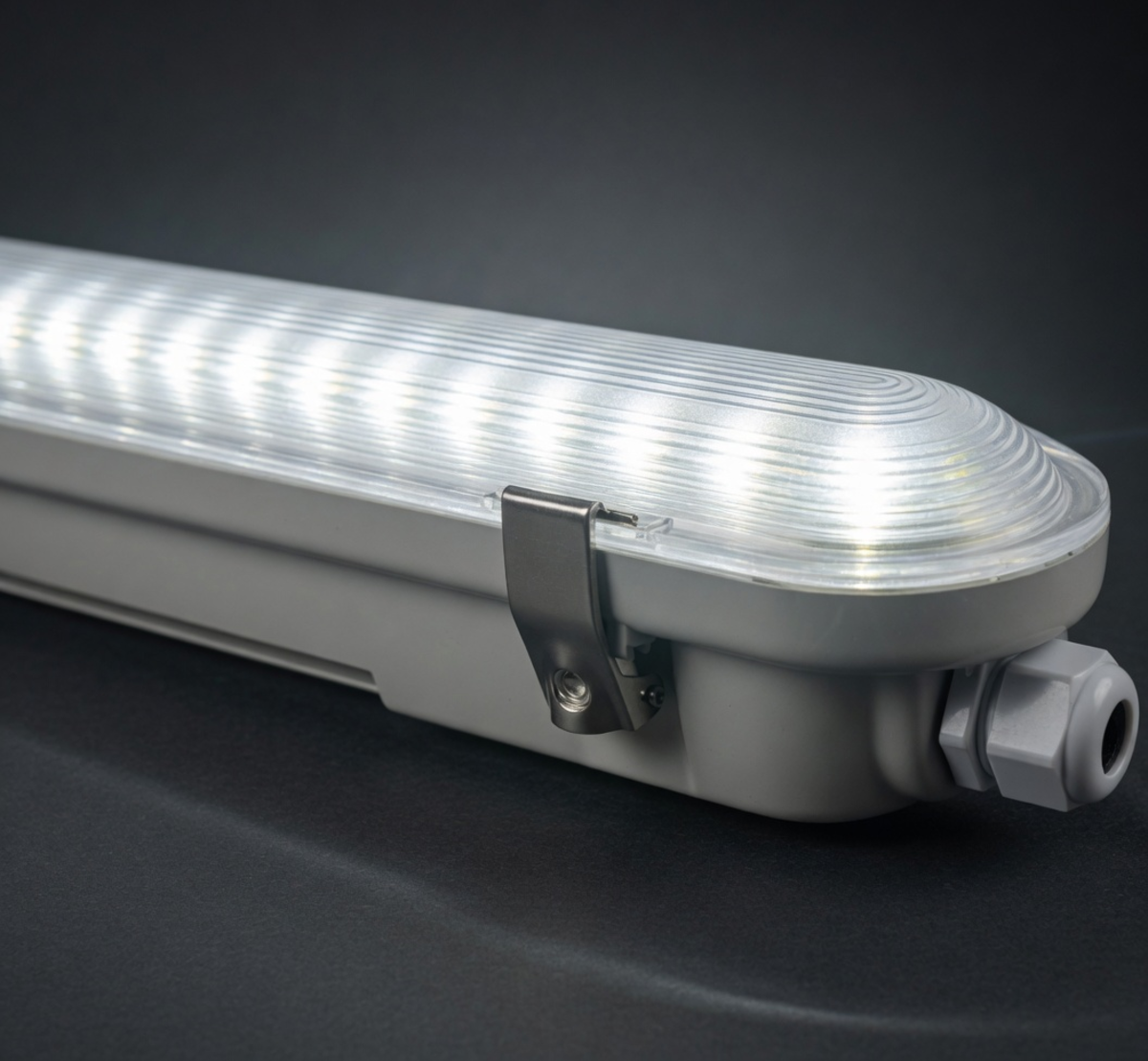

Scuba

2 variants available 0 accessories

Description

Scuba is MGE Lighting's top-of-the-range industrial LED luminaire, engineered for those who operate in the most extreme environments and cannot afford to compromise. Where operating conditions are pushed to the limit, Scuba is the answer: a luminaire built to resist, perform, and last well beyond expectations in any critical industrial context.

The high-pressure moulded polycarbonate body delivers IK10 mechanical resistance — the highest available impact protection rating — combined with total IP66 protection against dust and water. The UV-resistant silicone foam gaskets ensure a long-lasting hermetic seal, even in environments with prolonged exposure to UV rays, chemical agents, and extreme weather conditions.

With an efficiency exceeding 160 lm/W, Scuba delivers exceptional luminous performance while dramatically cutting energy consumption from day one. The inspectable LED module compartment simplifies maintenance without removing the entire luminaire, drastically reducing downtime and intervention costs. The stainless steel closing clips complete a product engineered to last in the most aggressive environments on the market. The range of professional options — DALI, Philips MasterConnect, and motion sensor — transforms it into a complete solution for intelligent industrial lighting management.

CRI80
IK10
Emergenza
Quick
Manutenzione Facilitata
ENEC
DALI
Sensore movimento
+50°C
IP 66
Classe I
CE
7 Anni di garanzia
Masterconnetc

Key features

    • High-pressure moulded polycarbonate body — IK10 — Maximum impact resistance: the high-pressure polycarbonate structure guarantees IK10 protection, the highest available, for installations in environments subject to impacts, vibrations, and extreme operating conditions

    • IP66 + UV-resistant silicone foam gaskets — Total and long-lasting hermetic sealing: IP66 protection combined with UV-resistant silicone foam gaskets ensures complete waterproofing and long-term durability even in environments exposed to UV rays and aggressive chemical agents

    • Efficiency exceeding 160 lm/W — Maximum energy savings in its class: exceptional light output with minimised consumption to cut operational costs and improve industrial installation sustainability from day one

    • Inspectable LED module compartment — Fast, simple, and cost-effective maintenance: direct access to the LED module compartment allows inspections and technical interventions without removing the entire luminaire, drastically reducing system downtime and management costs

    • Stainless steel closing clips — Secure and tamper-proof closure: the high-resistance stainless steel closing system guarantees luminaire integrity even under the most demanding operating conditions, ensuring maximum long-term reliability

    • DALI, MasterConnect, and motion sensor options — Intelligent and personalised management: DALI dimming for centralised control, Philips MasterConnect for advanced wireless control without additional wiring, and motion sensor for maximum automatic energy savings

Applications

  • Heavy industry & extreme environments — IK10, IP66, and high-pressure moulded polycarbonate for foundries, steelworks, chemical plants, and environments subject to impacts, vibrations, and aggressive agents

  • Food & pharmaceutical industry — IP66, UV-resistant gaskets, and certified materials for high-hygiene environments where reliability, cleanliness, and regulatory compliance are non-negotiable requirements

  • High-intensity warehouses & logistics centres — >160 lm/W efficiency and motion sensor for intelligent, automatic energy management across large surfaces with intensive operating cycles

  • Covered car parks & tunnels — IK10, IP66, and UV-resistant gaskets for structures subject to humidity, dust, chemical agents, and vandalism

  • Sports facilities & public structures — IK10 robustness and high luminous efficiency for gyms, indoor swimming pools, and public structures requiring resistant, low-consumption luminaires

  • Smart buildings & connected environments — DALI, Philips MasterConnect, and motion sensor for integration into advanced building automation systems with remote management and adaptive dimming

Variants

Code Watt Lumen Lm/W Kelvin Optics Dimensions Product datasheet LDT
SC-36-120-840 36 5760 160 4000K 120° 1207*W75*H70 Download -
SC-55-150-840 55 8800 160 4000K 120° 1507*W75*H70 Download -

Accessories and options

No optionals currently available.
