Description

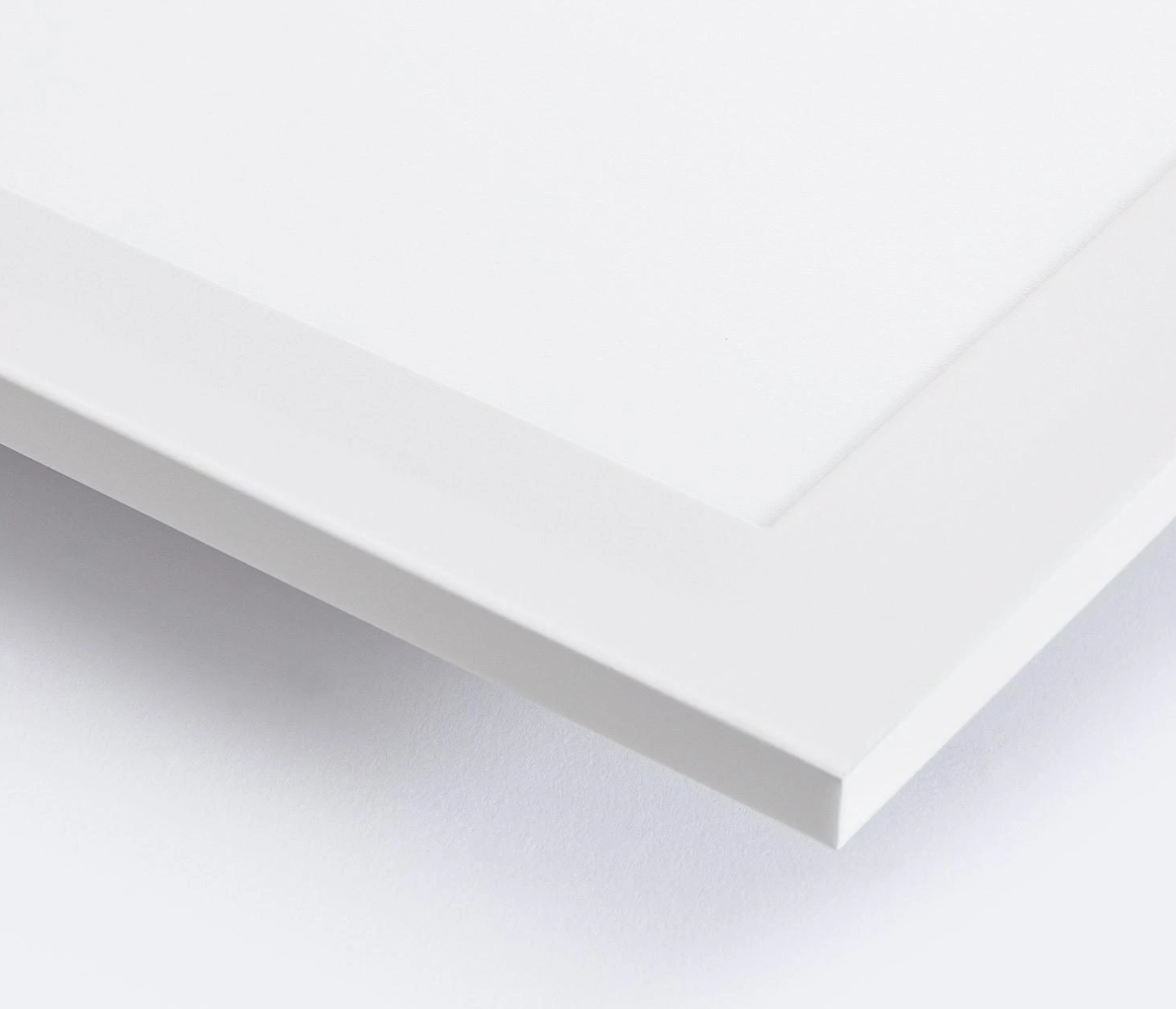

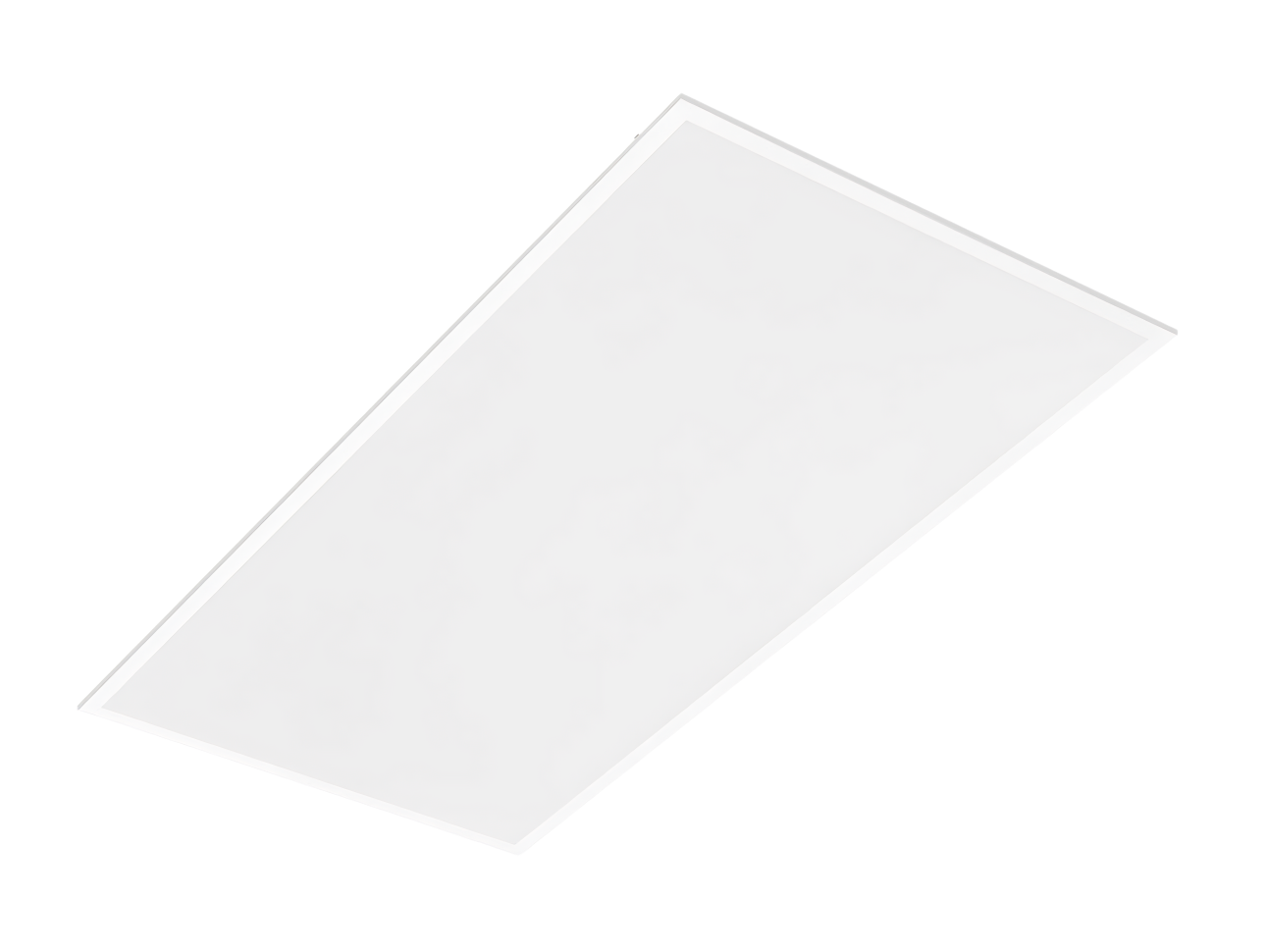

SmartLED 12060 is a professional LED panel designed for uniform diffused lighting for offices, schools and commercial spaces. MGE Lighiting developed this solution to deliver energy efficiency, long service life and light quality, making it ideal for indoor LED panel lighting projects.

Key features

Formed steel sheet housing, anti-yellowing PMMA cover, high-transmittance PMMA lenses, flicker-free, double electrical insulation, suitable for areas with video display terminals

Applications

Hospitals, offices, schools, public facilities, airports, train stations, conference rooms

Variants

Code	Watt	Lumen	Lm/W	Kelvin	Optics	Dimensions	Product datasheet	LDT
SLBP-IL-12060-38W-840	38	4000	105.26	4000	PMMA	1200x600x30 [mm]	Download	-
SLBP-IL-12060-50W-830	50	6000	120	3000	PMMA	1200x600x30 [mm]	Download	-
SLB-IL-12060-60W-830	60	7500	125	6000	PMMA	1200x600x30 [mm]	Download	-
SLB-IL-12060-60W-840	60	7500	125	4000	PMMA	1200x600x30 [mm]	Download	-
SLBP-IL12060-38W-830	38	4000	105.26	4000	PMMA	1200x600x30 [mm]	Download	-
SLBP-IL-12060-50W-840	50	6000	120	4000	PMMA	1200x600x30 [mm]	Download	-

Accessories and options

Code	Description
1010	DALI2 Dimming Protocol
6010	Emergency Kit 1hrs
6030	Emergency Kit 3Hrs
1000	Masterconnect driver
1001	Masterconnect Sensor daylight+motionsensor
1002	Masterconnect Switch
