Description

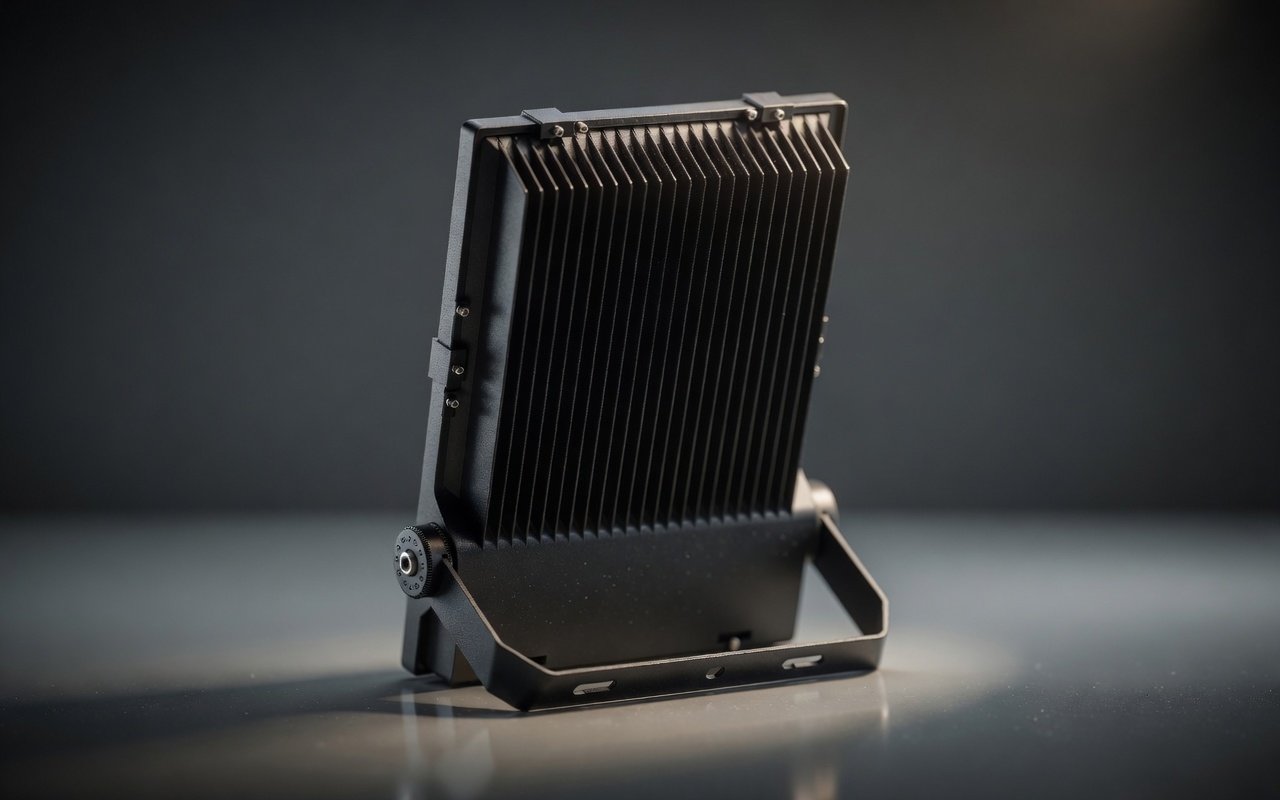

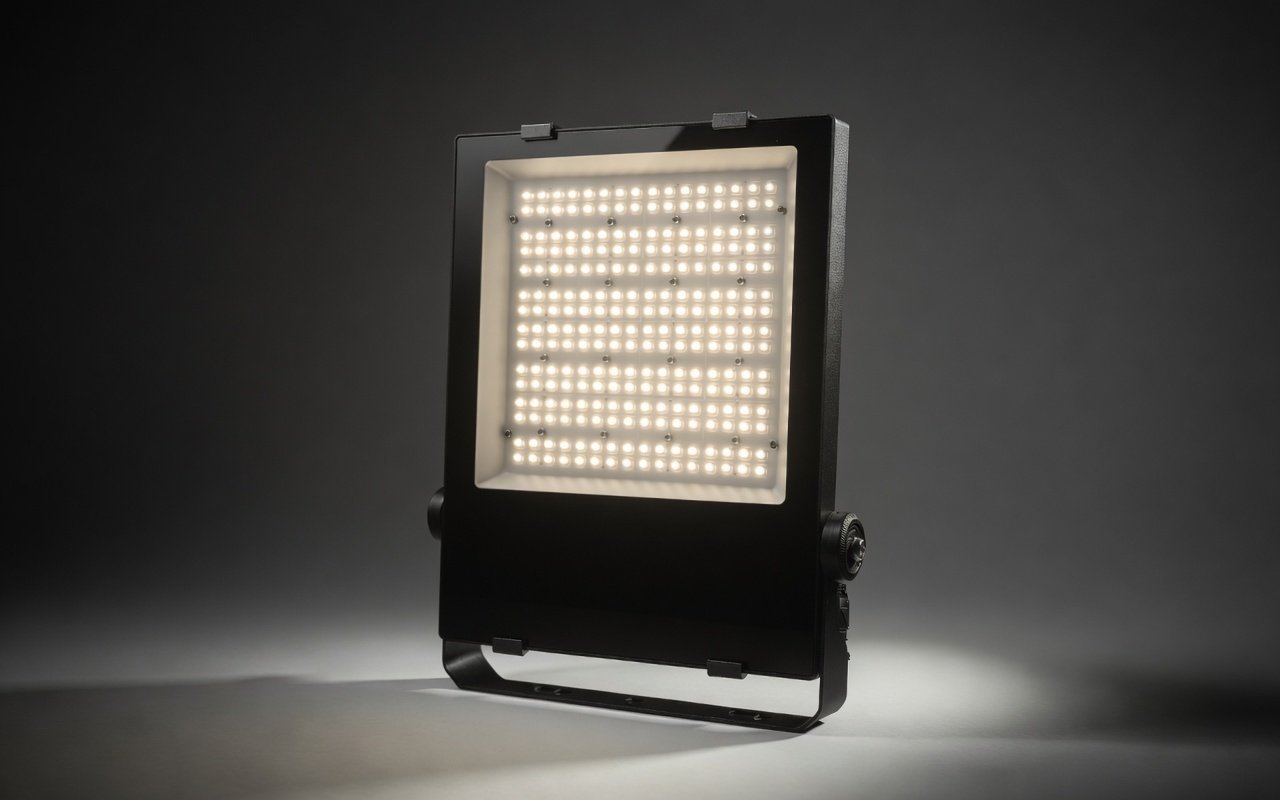

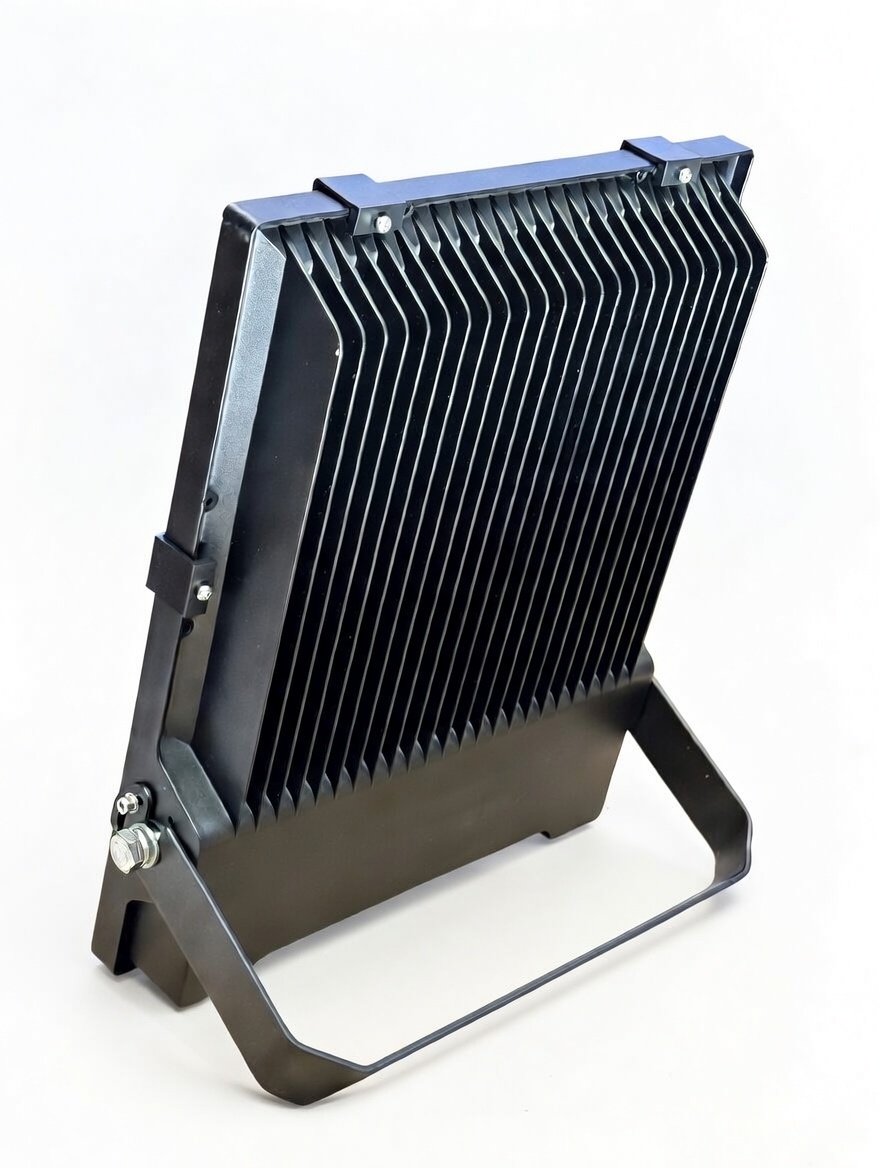

Floodlight for large areas, created to illuminate professional sports areas, equipped with valve anti-condensation, brass cable gland, tempered glass and top of the category lighting efficiency.

It allows you to illuminate large spaces and light your projects even the most complex ones with exceptional efficiency, resulting in significant energy savings.

Key features

Class-leading efficiency
High-efficiency PMMA lenses
Graduated adjustment for precise aiming
Designed to perfectly illuminate tennis courts, padel courts, soccer fields, etc.
Die-cast aluminum housing
Tempered protective glass
IP66-rated water resistance

Applications

Outdoor retail areas

Industrial

Tennis courts

Padel courts

Soccer fields

Variants

Code	Watt	Lumen	Lm/W	Kelvin	Optics	Dimensions	Product datasheet	LDT
F150P-100W-840-M3	100	17000	170	4000K	Asymmetrical	29124953 [mm]	Download	-
F150P-150W-840-M3	100	17000	170	4000K	Asymmetrical	29124953 (mm)	Download	-
F150P-200W-840-P50	200	34000	170	4000K	Asymetrica 50°	48538553 [mm]	Download	-
F150P-240W-840-P50	240	40800	170	4000K	Asymetrica 50°	485385140 [mm]	Download	-
F150P-400W-840-P50	400	68000	170	4000K	Asymetrica 50°	49641171 [mm]	Download	-
F150P-100W-850-M3	100	17000	170	5000K	Asymmetrical	29124953 (mm)	Download	-
F150P-150W-850-M3	100	17000	170	5000K	Asymmetrical	29124953 (mm)	Download	-
F150P-200W-850-P50	200	34000	170	5000K	Asymetrica 50°	48538553 [mm]	Download	-
F150P-240W-850-P50	240	40800	170	5000K	Asymetrical 50°	485385140 [mm]	Download	-
F150P-400W-850-P50	400	68000	170	5000K	Asymetrica 50°	49641171 [mm]	Download	-

Accessories and options

Code	Description
1010	DALI2 Dimming Protocol
5510	Plug connector
1000	Masterconnect driver
1001	Masterconnect Sensor daylight+motionsensor
1002	Masterconnect Switch
4040	Cable length on request
5050	Lamp body color on request
